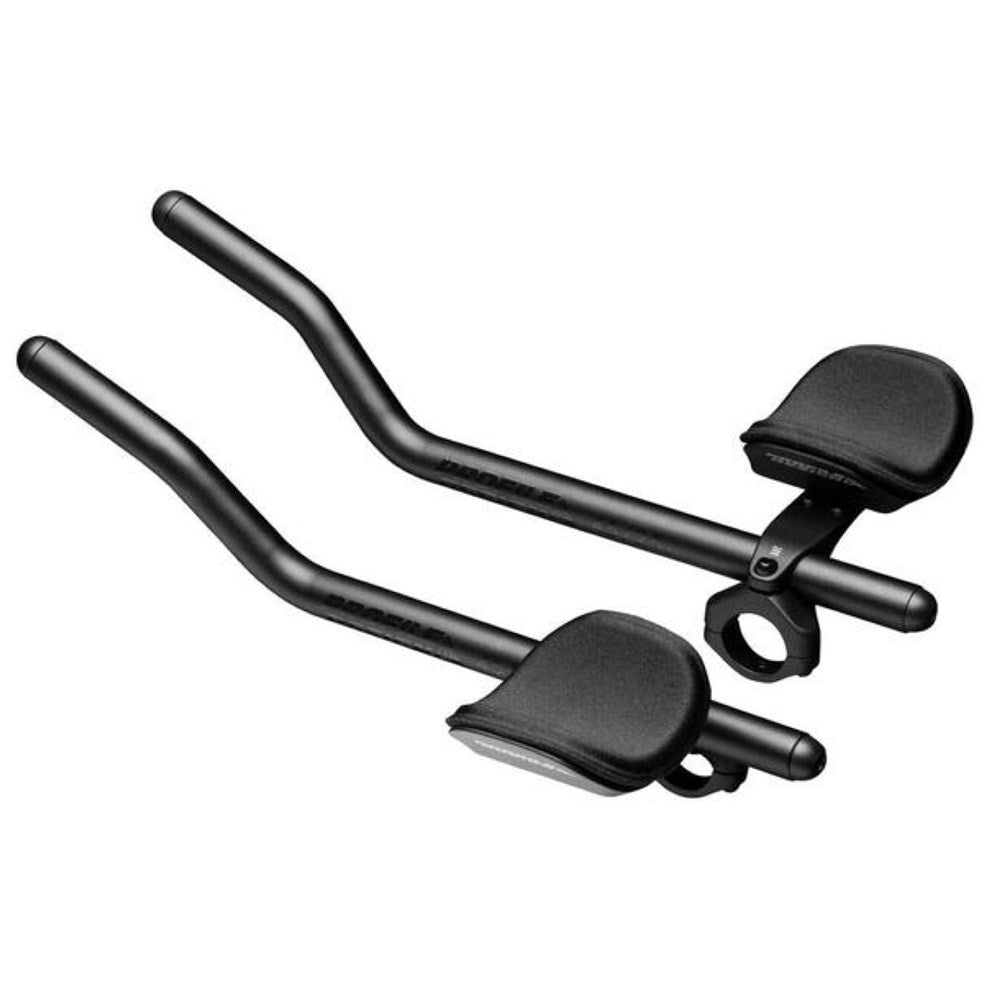

Profile Design Sonic/Ergo 4525a Aerobar
Profile Design Sonic/Ergo 4525a Aerobar
Regular price
$239.95 AUD
Regular price
Sale price
$239.95 AUD
Unit price
/
per
The Sonic/Ergo is designed to present minimal frontal area to create as little aerodynamic drag as possible. The main purpose of an aerobar is, of course, to get the rider into a fast position despite a fairly minimalist appearance the Sonic/Ergo offers a comprehensive fit range for exactly this purpose.
Fit Data
- Armrest Offset: -70mm to -2.5mm in 7.5mm steps
- Armrest Width: 124mm to 290mm in 18.5mm steps (With Extensions at 100mm)
- Armrest Stack: 60mm (no riser kit) to 130mm in 5mm increments (With aftermarket Riser Kit)
The extension length and rotation can be easily adjusted using the top bolt.
There are 100 distinct position options achievable just by moving the armrests. Combine that with the risers and this bar offers 1500 possible configurations. As a clip on bar it is also possible to adjust the extension width and tilt easily. This is the most adjustable clip on bar on the market.
Extensions
- The 4525a extensions have a first section at 45° and the grip at 25°. The rider can choose whether to hold high for the shrugged position or low for a more open, head up position.
- The 4525a offer a 7.5mm lateral shift per side. This allows the rider to get their hands narrower or wider without tilting the extensions so much that the shifters touch.
- Bracket: Sonic
- Clamp Diameter: 31.8mm (26.0 w/Shims)
- Armrest: Ergo / 10mm Pads
- Armrest Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)
- Armrest Offset: -70mm to -2.5mm in 7.5mm steps
- Armrest Stack: The minimum is 60mm and the bracket is compatible with our existing risers which add up to 130mm stack with (70mm of spacers added)
- Color: Matte Black
- Weight: 559g (Bracket: 234g Armrest: 130g Extensions: 195g)
Torque settings (all bolts are M6)
- Bar Clamp: 6Nm
- Extension Clamp: 6Nm
- Armrest Bolts: 4.7Nm
