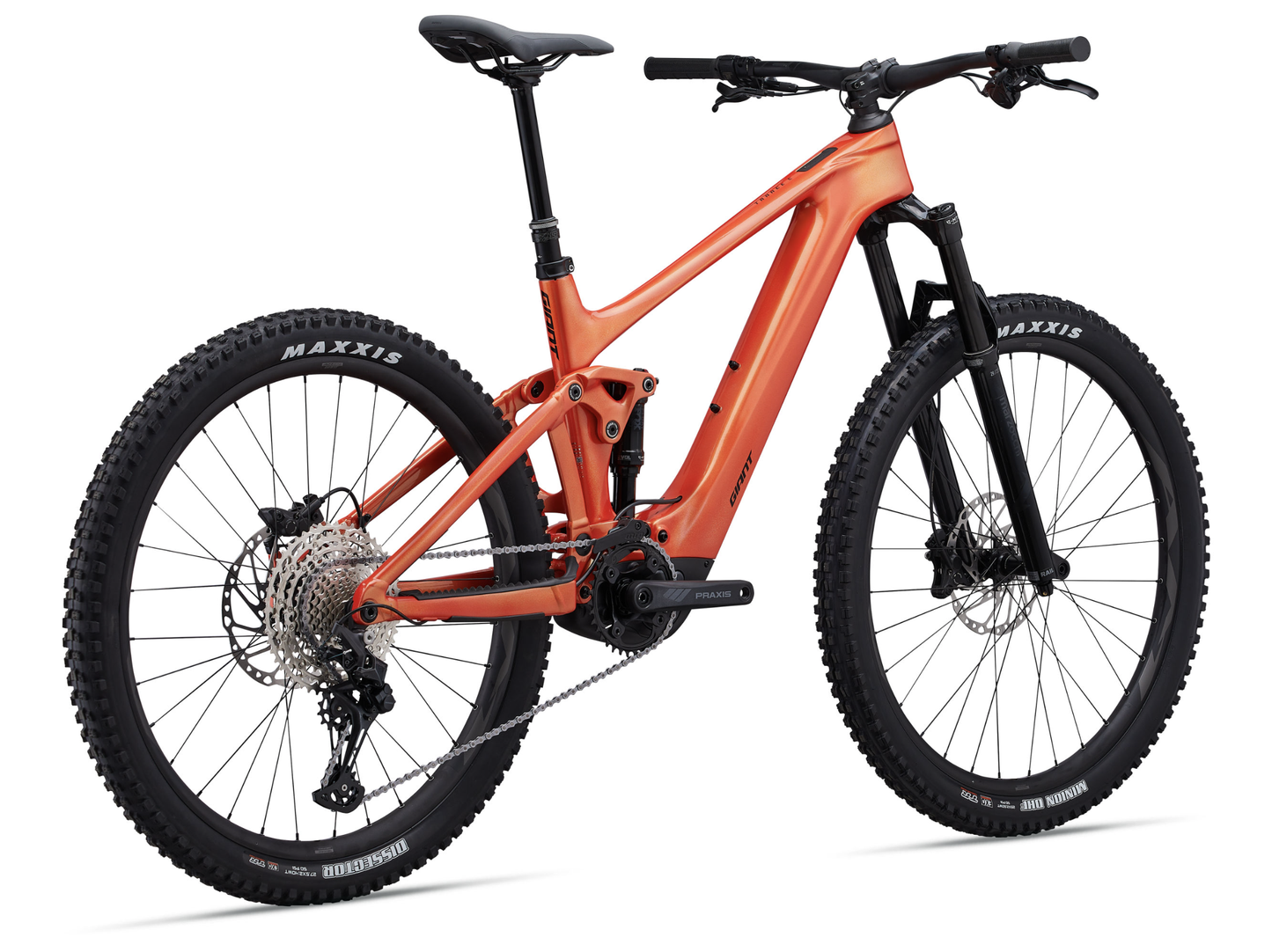

2024 Giant Trance X Advanced E+ Elite 3 - Helios Orange
2024 Giant Trance X Advanced E+ Elite 3 - Helios Orange
Regular price
$6,175.00 AUD
Regular price
$8,999.00 AUD
Sale price
$6,175.00 AUD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
In stock at supplier warehouse.
In-store pickup only — ready in 5–10 business days. Shipping not available.
This size is currently unavailable. Contact us for availability and arrival times.
Contact us2024 Giant Trance X Advanced E+ Elite 3 - Helios Orange. A full-suspension electric mountain bike with the equipment detailed below.
Supplier warehouse stock. In-store pickup only — ready in 5–10 business days. Shipping not available.
Specifications
| Motor | SyncDrive Pro2, 85Nm, powered by Yamaha |
|---|---|
| Controller | RideControl Ergo 3, grip integrated |
| Display | RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
| Battery | EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible |
| Charger | EnergyPak 4A smart charger compact |
| Maximum assisted speed | Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed |
| Sizes | S, M, L, XL |
| Colours | Helios Orange |
| Frame | Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension, flip chip, UDH hanger 12x148mm thru-axle |
| Fork | Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110 |
| Shock | Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Handlebar | Giant Contact SL 35 Trail, 35mm |
| Grips | Giant Tactal Pro-E, single lock-on |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm |
| Seatpost | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano Deore |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore 12-speed, Shadow+ |
| Brakes | Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R] |
| Brake Levers | Shimano Deore, I-spec EV |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm |
| Bottom Bracket | N/A |
| Rims | Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R] |
| Hubs | Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R] |
| Spokes | Sapim, e-bike optimised |
| Tyres | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| NSW Certification | ULL-104274-EA |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
Specifications are subject to change without notice.
