2024 Giant Reign Advanced 2 - Sangria/Carbon

2024 Giant Reign Advanced 2 — Sangria/Carbon

Shipping not available — in-store pickup only at Giant Nerang. Supplied from our supplier warehouse, with pickup ready in 5–10 business days. We will contact you when your bike is ready to collect. Available in Small, Medium and Large.

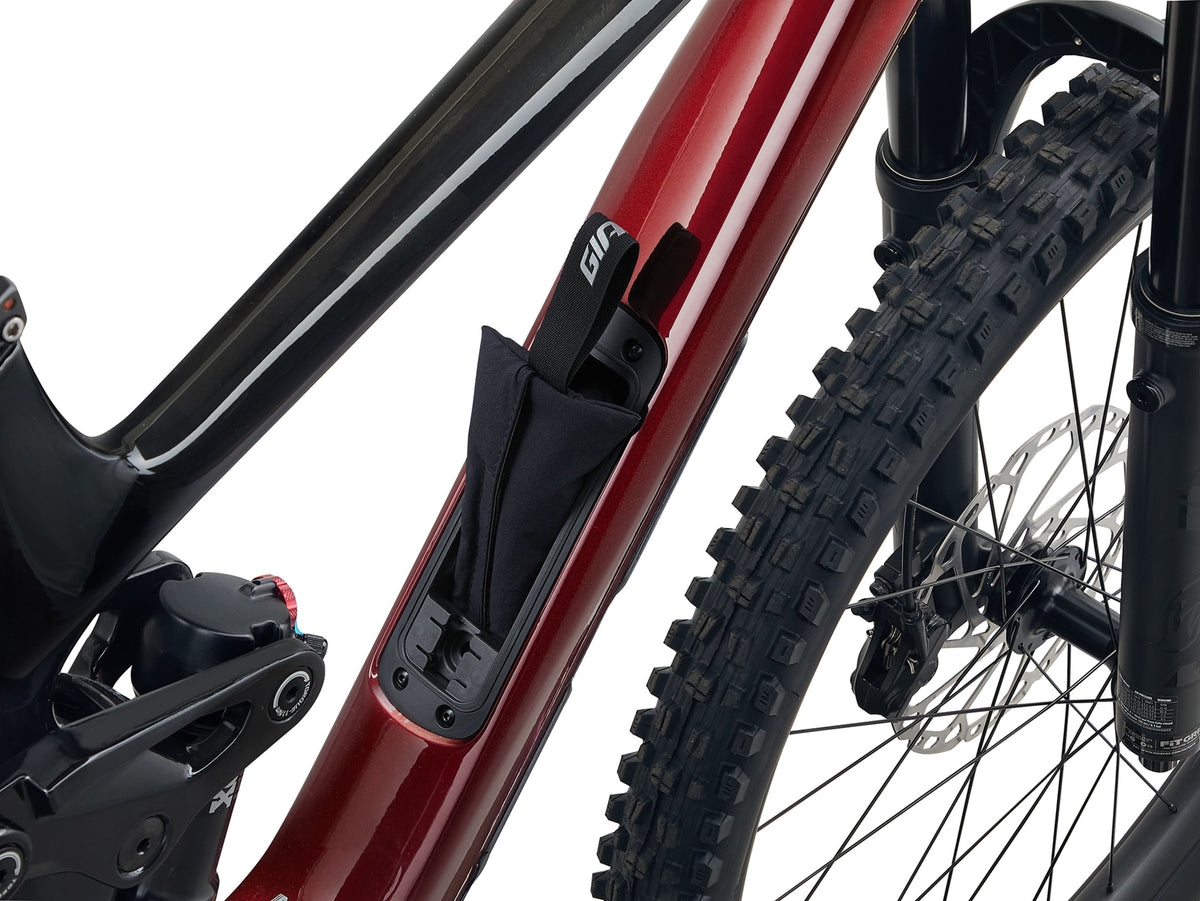

A full-composite enduro mountain bike with 29-inch wheels, 160mm Maestro rear suspension and a 170mm Fox 38 Rhythm fork. A three-position flip chip adjusts geometry to suit the terrain, with compatibility for a 27.5-inch rear wheel. Integrated downtube storage keeps essentials close at hand.

KEY FEATURES
• Advanced-Grade Composite front and rear triangles and an Advanced Forged Composite upper rocker arm.

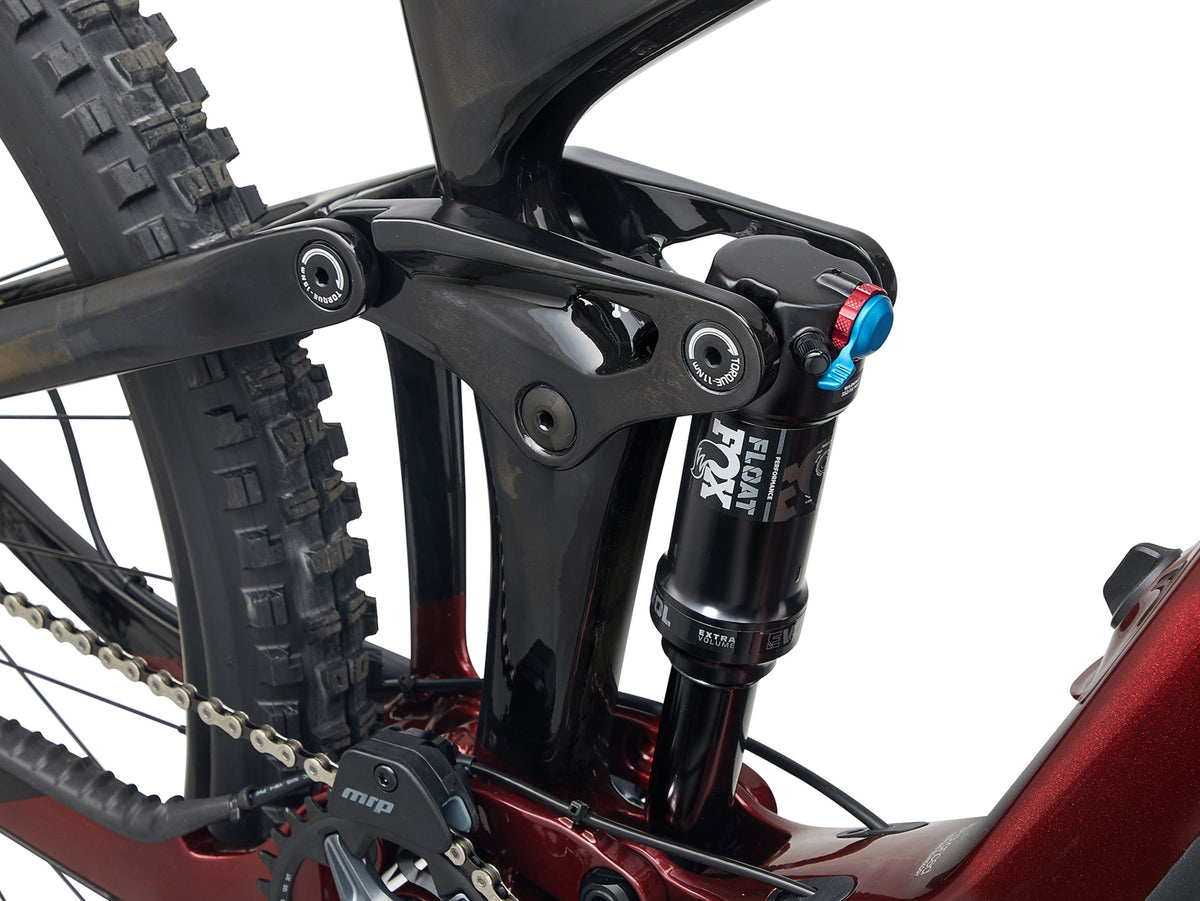

• Maestro suspension with a trunnion-mounted shock and 62.5mm stroke.
• Choose 63.5°, 63.9° or 64.2° head angles and a 35, 30 or 25mm bottom bracket drop.
• Stock 29-inch rear wheel for stability and rollover; optional 27.5-inch rear wheel for more agile handling.
• OverDrive steering, tubeless-ready wheels and tyres, and an adjustable-travel dropper seatpost.

SPECIFICATIONS
Sizes: Small, Medium, Large
Colours: Sangria/Carbon
Frame: Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip 3 position, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, integrated downtube storage, 55mm Chainline
Fork: Fox 38 Rhythm, 170mm, GRIP damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant
Shock: Fox Float Performance, custom tuned for Giant

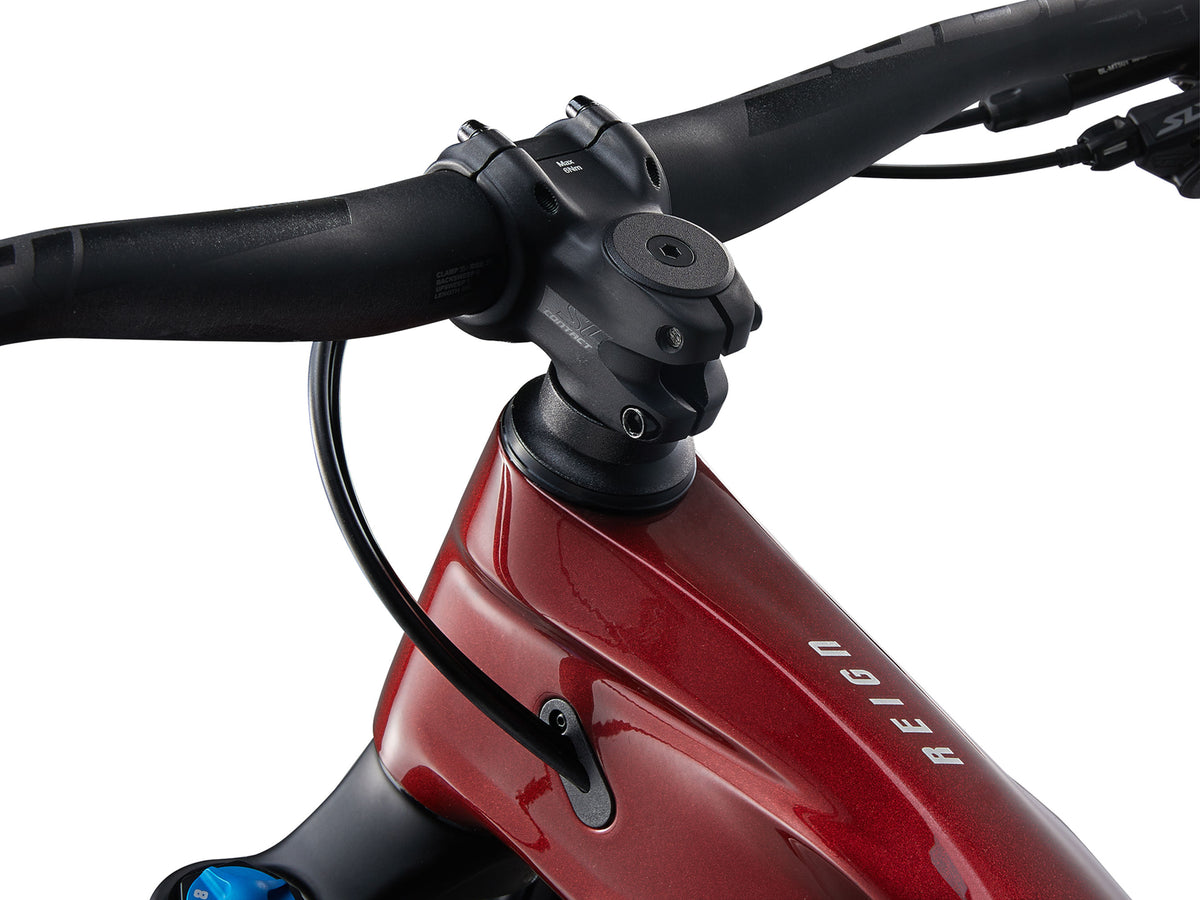

Handlebar: Giant Contact TR35, alloy, 35mm
Grips: Giant Tactal Pro Single lock-on
Stem: Giant Contact SL 35 S:40mm, M:40mm, L:40mm
Seatpost: Giant Contact Switch AT dropper, adjustable travel, remote
Saddle: Giant Romero SL
Pedals: N/A
Shifters: Shimano SLX SL-M7100, 1x12
Front Derailleur: N/A
Rear Derailleur: Shimano SLX RD-M7100
Brakes: Shimano BR-MT520, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm
Brake Levers: Shimano Deore BL-MT501
Cassette: Shimano Deore M6100, 10x51
Chain: KMC X-12
Crankset: Shimano SLX, 32t, 55mm chainline S:165mm, M:170mm, L:170mm
Bottom Bracket: Shimano, press fit
Rims: Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
Hubs: [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes: Stainless steel
Tyres: [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless
Extras: Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector
Weight: Weight varies with size, finish and equipment. Contact us for a measured weight.

SIZE GUIDE
Small: 163–172cm rider height
Medium: 171–180cm rider height
Large: 179–188cm rider height
Sizing is a reference only. Contact us to confirm fit.

GEOMETRY
  / S / M / L
  / LOW | MID | HIGH / LOW | MID | HIGH / LOW | MID | HIGH
A SEAT TUBE LENGTH (mm) / 400 / 425 / 450
A1 SEAT POST INSERTION DEPTH (mm) / 262 / 287 / 312
B SEAT TUBE ANGLE / 78.3° | 78.7° | 79.0° / 78.3° | 78.7° | 79.0° / 77.3° | 77.7° | 78.0°
C TOP TUBE LENGTH (mm) / 556 | 555 | 555 / 587 | 586 | 585 / 620 | 620 | 619
D HEAD TUBE LENGTH (mm) / 100 / 105 / 115
E HEAD TUBE ANGLE / 63.5° | 63.9° | 64.2° / 63.5° | 63.9° | 64.2° / 63.5° | 63.9° | 64.2°
F FORK RAKE (mm) / 44 / 44 / 44
G TRAIL (mm) / 140 | 138 | 135 / 140 | 138 | 135 / 140 | 138 | 135
H WHEELBASE (mm) / 1214 | 1213 | 1212 / 1246 | 1245 | 1244 / 1271 | 1270 | 1269
I CHAIN STAY LENGTH (mm) / 445 | 443 | 442 / 445 | 443 | 442 / 445 | 443 | 442
J BOTTOM BRACKET DROP (mm) / 35 | 30 | 25 / 35 | 30 | 25 / 35 | 30 | 25
K STACK (mm) / 627 | 624 | 622 / 632 | 629 | 626 / 641 | 638 | 635
L REACH (mm) / 426 | 430 | 434 / 456 | 460 | 464 / 476 | 480 | 484
M STAND OVER HEIGHT (mm) / 720 | 724 | 729 / 735 | 739 | 744 / 751 | 756 | 760
O STEM LENGTH (mm) / 40 / 40 / 40
P CRANK LENGTH (mm) / 165 / 170 / 170
Q WHEEL SIZE / 29" / 29" / 29"

Specifications may change due to component substitutions. Confirm final specifications with us when ordering.
